Outdoor Anchor

Outdoor Anchor

UbiTrack-A2

Sale price
$799.00
Regular price
$799.00
Unit price
per
- +
Anchors and Tags need to be used together.

Key Features

IP65 Waterproof
Anti-thunder
Long Distance

Documentation

Description

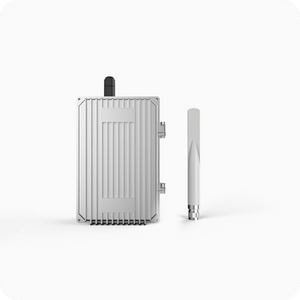

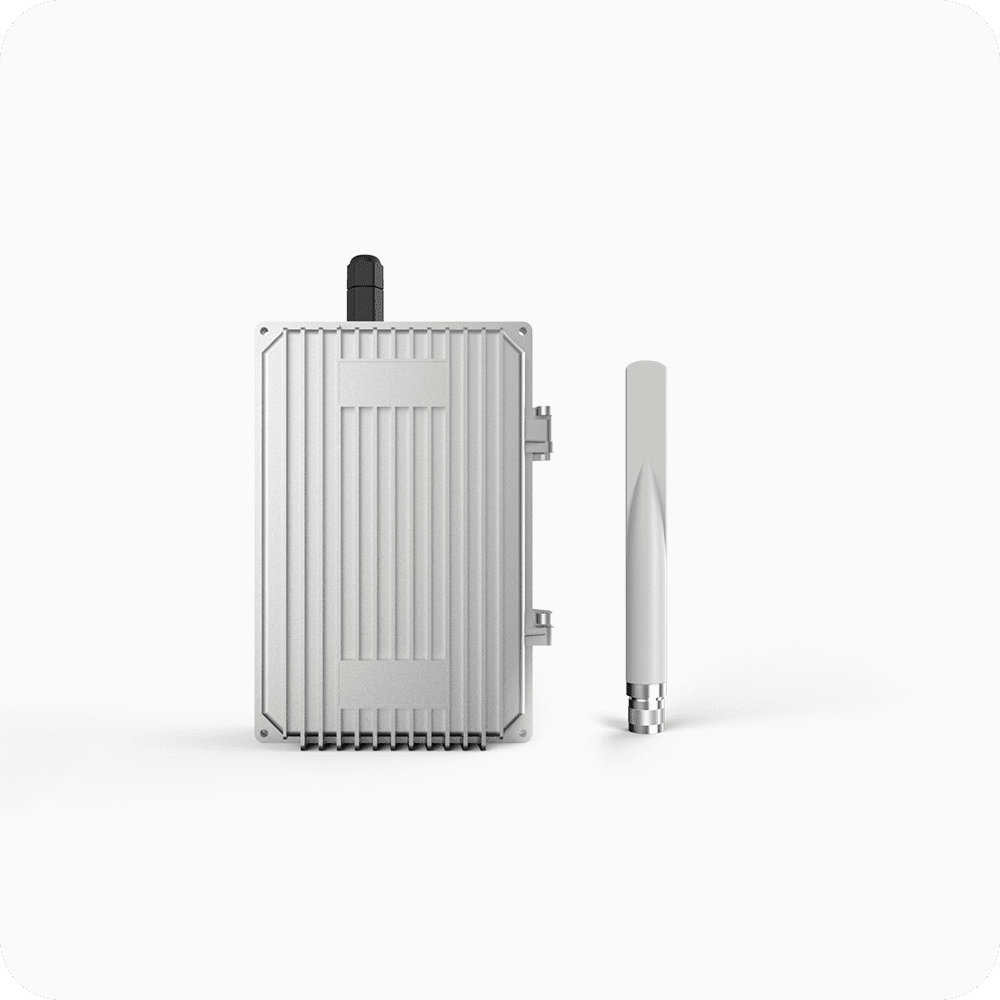

UbiTrack-A2 is an outdoor positioning anchor that supports UWB technologies. It dopts aluminum alloy metal shell, supports IP65 waterproof and dustproof. The anchor uses the omnidirectional antenna, which allows it to work under various harsh environments.

Outdoor Anchors

Appearance & Dimensions

product size1 product size2

Specifications

Power Supply

Power Supply: PoE or AC 220V

Network

Network: Supports Ethernet(PoE)

UWB Operating Frequency

Positioning System Frequency: 3.5GHz-6.5GHz

Operating Temperature

Operating Temperature: -20ºC to 60ºC

Dimensions

Dimensions: 11.02"× 7.28"× 3.15" (280mmx185mmx80mm)

Housing Material

Housing Material: Die-casting Aluminum

IP Level

IP Level: IP65

Installation

①Wall Mounting Installation

Outdoor Anchors Installation

②Pillar Mounting Installation

Outdoor Anchors Installation
