Description

UbiTrack-A2 is an outdoor positioning anchor that supports UWB/ Bluetooth /WiFi technologies. It dopts aluminum alloy metal shell, supports IP65 waterproof and dustproof. The anchor uses the omnidirectional antenna, which allows it to work under various harsh environments.

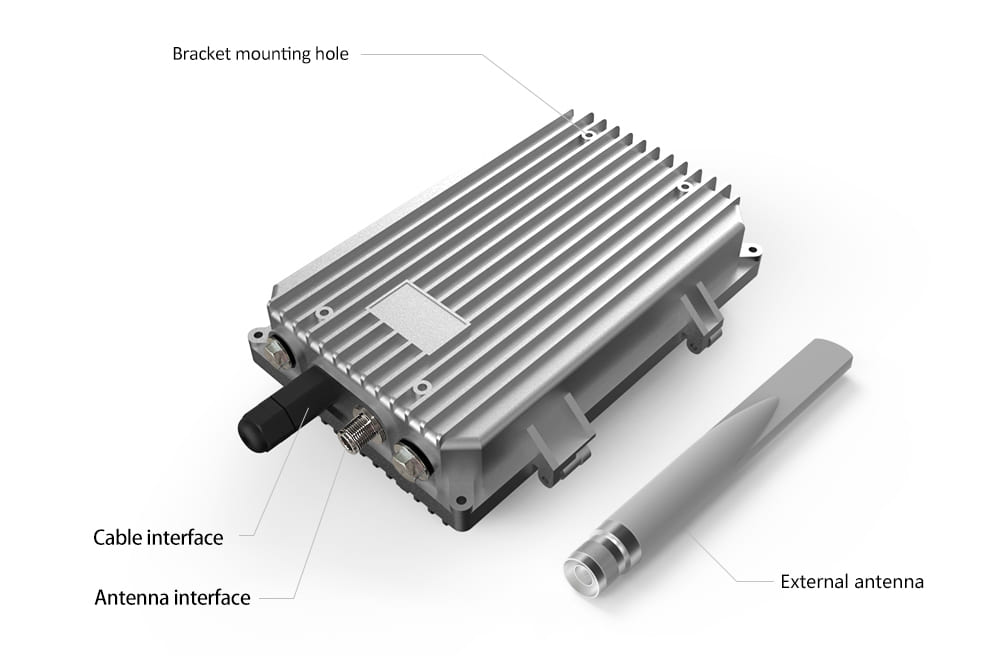

Appearance & Dimensions

Specifications

  Power Supply: PoE or DC12V /1A

  Network: Supports Ethernet(PoE)

  Positioning System Frequency: 3.5GHz-6.5GHz

  Operating Temperature: -20ºC to 60ºC

  Dimensions: 11.02"× 7.28"× 3.15" (280mmx185mmx80mm)

  Bluetooth Integrated and Supported

  Housing Material: Die-casting Aluminum

  IP Level: IP65

Installation

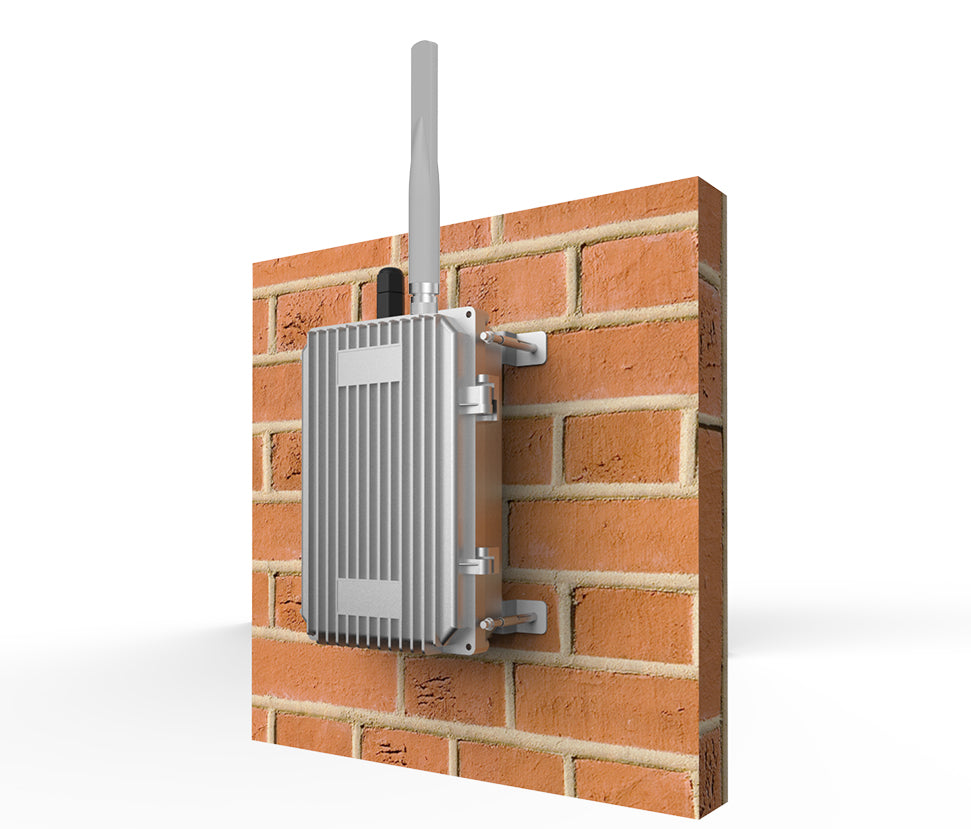

①Wall Mounting Installation

②Pillar Mounting Installation
