Positioning Badge(With Screen)

Positioning Badge(With Screen)

UbiTrack-TB1

Sale price
$120.00 USD
Regular price
$120.00USD
Unit price
per

- +

Key Features

Hybrid positioning two - way communication
Integrated RFID
SOS alarm
E-ink screen

Description

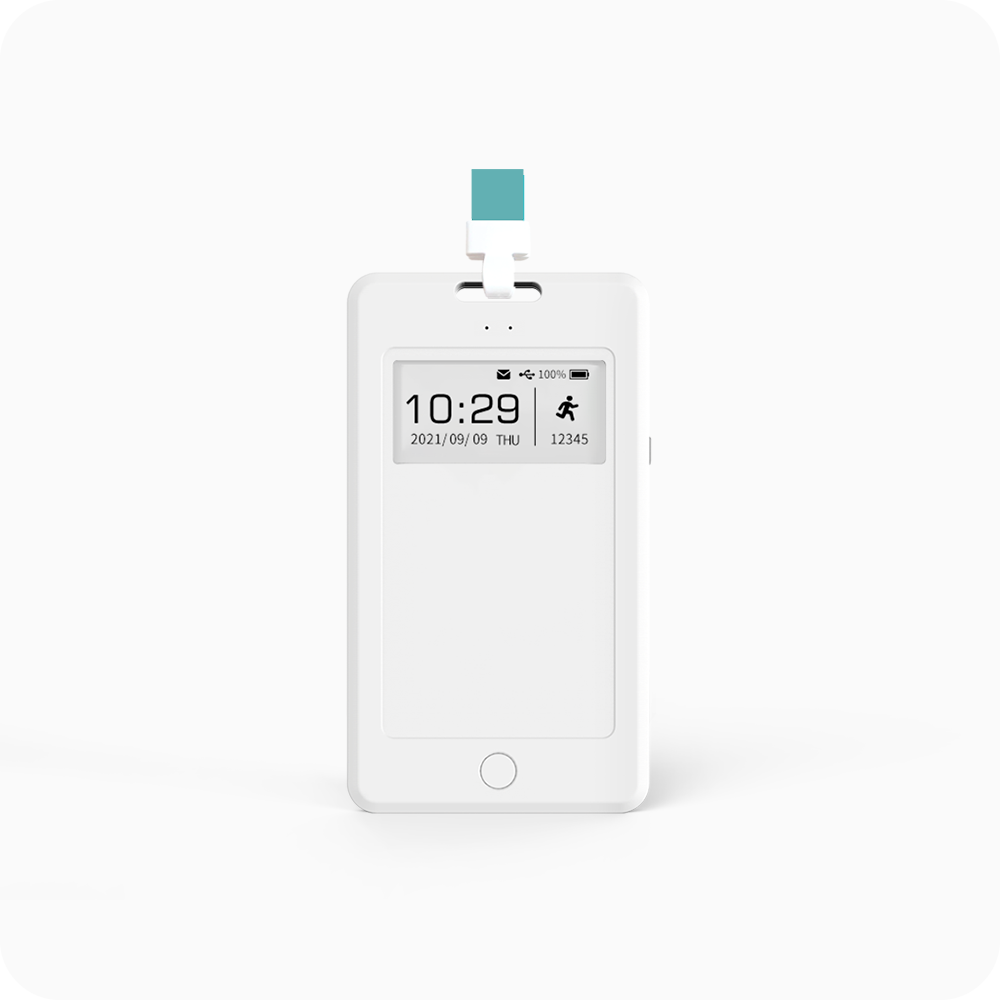

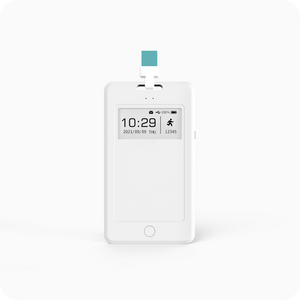

UbiTrack-TB1 is a card positioning tag that can be worn as a work tag for personnel positioning. It supports UWB, Bluetooth mixed location two-way communication. The badge includes tracking, contactless door access (RFID), motion detection and SOS one-click alarm, and it can also be equipped with an optional e-ink screen to display detailed information of personnel, notification information and so on.

USE case

Our read-to-use products include wireless tracking badges and tamper-proof wristbands, which are ideal for use in hospitals, smart buildings and prisons. We also offer tags with built-in environmental monitoring which are perfect for logistics and warehousing.

Custody Monitoring

Custody Monitoring

Hospitals & Care Homes

Hospitals & Care Homes

Industrial

Industrial

Exhibition

Exhibition

Specifications

UWB Operating Frequency

  UWB Operating Frequency: 3.5GHz-6.5GHz

UWB Transmitting Power

  UWB Transmitting Power: 0-33.5dB (Adjustable)

Bluetooth Operating Frequency

  Bluetooth Operating Frequency: 2.4 GHz

NFC Operating Frequency

  NFC Operating Frequency: 13.56MHz

Additional Sensors

  Additional Sensors: Acceleration Sensor

Optional E-Ink Screen

  Optional E-Ink Screen: 1.91”×0.93”(48.55mmx23.71mm)

Stand-by Power Consumption

  Stand-by Power Consumption: 0.15mW

Optional Functions

  Optional Functions: Messages, vibration or voice, SOS,

      etc.

Power Supply

  Power Supply: Rechargeable 950mAh lithium battery

Battery Life

  Battery Life: 1-3 months

Dimensions

  Dimensions: 4.92”×2.76”×0.27”(125mmx70mmx6.9mm)

Operating Temperature

  Operating Temperature: -20ºC to 55ºC

Operating Humidity

  Operating Humidity: 10-90%
